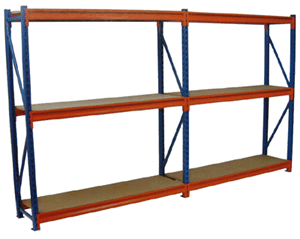

                    Bulk Storage Rack
  |



                     Bulk
                    storage rack has been designed to provide economical storage
                    whilst providing unrivalled strength and rigidity. The design
                    offers an upright width of 47mm with a central tapered slot
                    which offers a strong friction whilst being easier to install
                    the beam levels. The beams are formed as an 87mm "Z"
                    profile section with a 3 fingered claw that can be adjusted
                    on a pitch of 2 inch. The beams are then fitted with deck
                    supports which also locate into the beam eliminating any beam
                    rotation.
                  Features: A heavy duty racking system for all

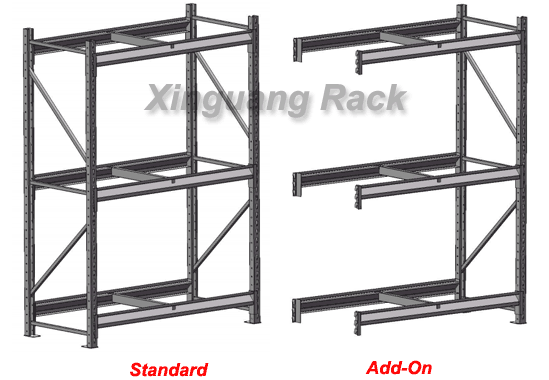

                    your bulky needs; System can be added to as your needs grow;
                    Heavy duty "Z" beams support over 1000kg UDL; Levels
                  can be adjusted every 2";



  |






                            |   Upright
                                Frame (THICKNESS: 16GA/1.5MM)  |


                            |   Item  |
                              Size
                                (Height)  |
                              Weight
                                (LBS)  |
                              |


                            |   UPRIGHT72  |
                              72"  |
                              8.5  |
                              |


                            |   UPRIGHT84  |
                              84"  |
                              9.9  |
                              |


                            |   UPRIGHT96  |
                              96"  |
                              11.2  |
                              |


                            |   UPRIGHT120  |
                              120"  |
                              14  |
                              |


                            |   Brace
                                - Horizontal and Diagonal
                                (THICKNESS: 18GA/1.2MM)  |


                            |   Item  |
                              Size
                                (Length)  |
                              Weight
                                (LBS)   |
                              |


                            |   HOR18  |
                              18"  |
                              0.7
                                  |
                              |


                            |   HOR24  |
                              24"  |
                              0.9
                                  |
                              |


                            |   HOR36  |
                              36"  |
                              1.4  |
                              |


                            |   HOR48  |
                              48"  |
                              1.8  |
                              |


                            |   DIA18  |
                              18"  |
                              1.2  |
                              |


                            |   DIA24  |
                              24"  |
                              1.4  |
                              |


                            |   DIA36  |
                              36"  |
                              1.7  |
                              |


                            |   DIA48  |
                              48"  |
                              2.1  |
                              |


                            |   Z
                                Beam (THICKNESS: 14GA/1.9MM)  |


                            |   Item  |
                              Size
                                (Length)  |
                              Weight
                                (LBS)   |
                              Load
                                (LBS)   |


                            |   Z BEAM60  |
                              60"  |
                              9.8  |
                              2200
                                  |


                            |   Z BEAM72  |
                              72"  |
                              11.7  |
                              1980
                                  |


                            |   Z BEAM84  |
                              84"  |
                              13.2  |
                              1760
                                  |


                            |   Z BEAM96  |
                              96"  |
                              15.2  |
                              1320
                                  |


                            |   Safely
                                Support (THICKNESS: 16GA/1.5MM)  |


                            |   Item  |
                              Size
                                (Length)  |
                              Weight
                                (LBS)
                                 |


                            |   ZSS24  |
                              24"  |
                              1.5
                                 |


                            |   ZSS36  |
                              36"  |
                              2.3
                                 |


                            |   ZSS48  |
                              48"  |
                              3.2
                                 |


                            | We
                              can also supply you the size specifications at your
                              request !!! |

                          |

                         |

                    |

              |
